TECCO Mesh

Slope Stabilisation Mesh, Tecco Netting, Tecco Wire Mesh, Tecco System

The TECCO system consists of TECCO steel wire mesh, anchors, an anchor bearing plate, border and suture ropes and net connection elements.
The TECCO steel wire mesh is made using 3mm/4mm/2mm high-tensile steel wire. And with anchors the TECCO steel wire mesh covers over the slope tension and firmly. The TECCO erosion blanket is firmly fixed to slopes and features a finer mesh to ensure that small rocks can be held in place in addition to large boulders.

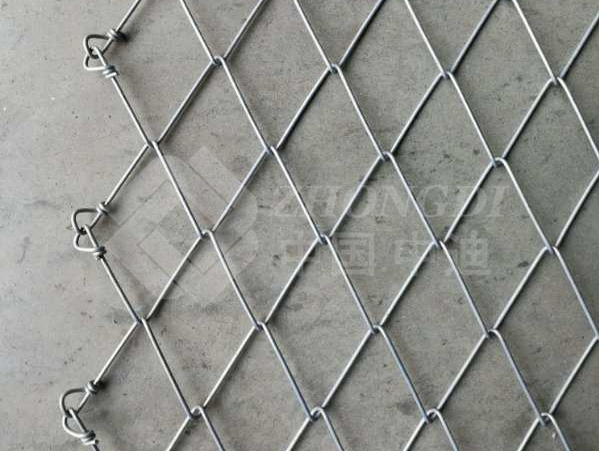

1) High Tensile Strength Wire Mesh - TECCO Mesh With Mesh Edge Knotted
Wire Strength: 256 ksi (1770 N/mm2)
Wire Diameter: 0.125 inch ( 3mm ) (Other wire diamters is avaialble)
Material: Galfan Wire (95% Zn / 5% Al coating) (or Heavily Zinc Coating ( ≥200g/m2)Or others.)
Coating: 0.41 oz/ft2 min,125g/m2
Mesh Aperture: 3.3"(83mm) x 5.6"(143mm)
Mesh Height: 0.43" (11mm)
Mesh Strength: 110-150 KN/m

2) Tecco Mesh Standard Roll:
Mesh Edge Knotted
Roll Width: 3.5m, 2.5m, 1m etc
Roll Length: 10m, 20m, 30m etc
Weight: 1.45kg/m2

3) Feature of Tecco Mesh:
1. Anti-corrosion
2. Easy to install
3. Don't need maintenance

4) TECCO Mesh Systerm:
Components

The TECCO system consists of four main components that are carefully coordinated with each other:
1). TECCO Steel Wire Mesh
TECCO mesh is made of high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.

2). TECCO Spike Plates
Rigid spike plates that are reinforced with ribbing ensure optimal load transmission from soil or rock anchors to the TECCO mesh.
These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope.
The plates are galvanized and have dimensions of 13.0''*7.5"*0.4"(330mm*190mm*10mm).

3). TECCO Connection Clips
The high-strength steel wire connection clips enable mesh sections to be joined without overlapping and still guarantee one hundred percent transfer of forces. These clips are hot dip galvanized and consist of 0.25"(6mm) thick steel spirals.

4). Soil or Rock Nails
Adapted to the local soil and rock static requirements, the TECCO mesh can be anchored in accordance with our dimensioning concept with commercial soil or rock nails. The main anchors of the system are installed in a grid typically from 6.6 to 13.1 ft (2.0 to 4.0m) horizontal and vertical spacing. Actual spacing depends upon the results of site analysis and modeling. Anchor consist of commercially available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm). Selfdrilling grout injection anchors are also permitted.Additional anchors may also be used to provide added support at boundaries and in low points and hollows.
